Factory Grow Lighting Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Trash LED Grow Light Veg and Flower

1 Piece
MOQ
Factory Grow Lighting Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Trash LED Grow Light Veg and Flower
Features Gallery Product Description Request A Quote
Features
Specifications
Lighting Solutions Service: Lighting And Circuitry Design
Application: Plant Grow Lighting
PPFDμmol/(m2·s): 150-250
Input Voltage(V): AC 100-240V
Lamp Luminous Flux(lm): 150-220 Lumen Per Watt
Working Temperature(℃): -35 - 85
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: Ip33
Model Number: SN-480W-QB288*4-LM301H
Light Source: LED
Warranty(Year): 1-Year
Main LED Light Source: LM301H
CRI (Ra>): 80
Color Temperature(CCT): Warm White
Power: 480W
Driver: Meanwell LED Driver Series
Applied For: LED Grow Light
Heatsink Size: L660*W500*H4mm
Voltage: 48V
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: SN-480W-QB288*4-LM301H
Payment & Shipping Terms
Packaging Details: Standard export package.
Product Description
Product Description

Centro South Customized QB288 16S18P PCB MW 550 V3 480W Samsung LM301H Full Spectrum SK Bin LED Grow Light Veg and Bloom

1.High efficiency value: each 480W QB288*4 board uses 1152pcs original Samsung LM301H diodes;

2.Effective spectrums: 3000K/3500K/4000K warm white light full spectrum is available to ensure the most useful spectrum for indoor plants growing in all stages;

3.Pre-assembly; easy to operate;

4.Power supply: brand Mean Well driver;

5.Warranty: 1 year for the LED board, 3-5 years warranty for the LED driver;

6.Guaranteed 24 hours on-line after-sale services;

7.Standard with dimmable switch, easy to operate;

Product Effects

Packaging & Shipping

No. Power Model Parts List LED Quantity
1 120W

SN-120W-QB288*1pcs

LM561C/LM301B/LM301H

 1pcs QB288 PCB board (43-48V, 16S18P),
PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
(size L326*W210*H22mm, weight 1.2Kg)
1pcs driver, Meanwell 120H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

288 pcs leds

LM561C/LM301B/LM301H
2 120W

SN-120W-QB288*1pcs

LM561C/LM301B/LM301H
& 660nm LEDs

 1pcs QB288 PCB board (43-48V, 16S18P),
PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
(size L326*W210*H22mm, weight 1.2Kg)
1pcs driver, Meanwell 120H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

252 pcs leds,

LM561C/LM301B/LM301H
36 pcs 660nm leds.
3 240W

SN-240W-QB288*2pcs

LM561C/LM301B/LM301H

 2pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink,
size L632*W210*H22mm(heatsink weight 2.3Kg)
1pcs driver, Meanwell 240H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

576 pcs leds

LM561C/LM301B/LM301H
4 240W

SN-240W-QB288*2pcs

LM561C/LM301B/LM301H
& 660nm LEDs

 2pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L632*W210*H22mm(heatsink weight 2.3Kg)
1pcs driver, Meanwell 240H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
1pcs rope ratchet hanger.
1pcs hang wire.
One set connectors+screws+cables+nylon ties

504 pcs LM301H leds,

LM561C/LM301B/LM301H
72 pcs 660nm leds.
5 320W

SN-320W-QB288*3pcs

LM561C/LM301B/LM301H

 3pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L940*W210*H22mm(heatsink weight 3.5Kg)
1pcs driver, Meanwell 320H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

864 pcs leds

LM561C/LM301B/LM301H
6 320W

SN-320W-QB288*3pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 3pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
1pcs finned antioxidant heatsink, size L940*W210*H22mm(heatsink weight 3.5Kg)
1pcs driver, Meanwell 320H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs Power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

756 pcs leds,

LM561C/LM301B/LM301H
108 pcs 660nm leds

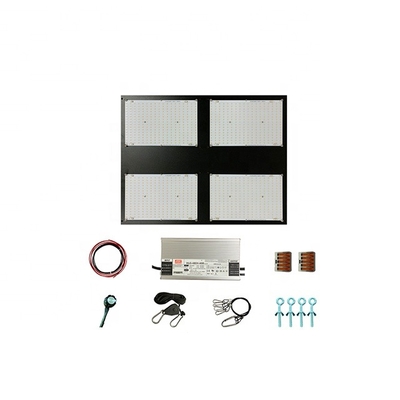

7 480W

SN-480W-QB288*4pcs

LM561C/LM301B/LM301H

 4pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs flat antioxidant aluminum heatsinks, each size L660*W500*H4mm.
(heatsink weight 3.6Kg)
1pcs driver, Meanwell 480H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1152 pcs leds

LM561C/LM301B/LM301H

8 480W

SN-480W-QB288*4pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 4pcs QB288 PCB boards (43-48V, 16S18P),
each PCB size 285*175*1.6mm.
1pcs flat antioxidant aluminum heatsinks, each size L660*W500*H4mm.
(heatsink weight 3.6Kg)
1pcs driver, Meanwell 480H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1008 pcs leds,

LM561C/LM301B/LM301H
144 pcs 660nm leds.
9 600W

SN-600W-QB288*6pcs

LM561C/LM301B/LM301H

 6pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
2pcs finned antioxidant aluminum heatsinks, (each heatsink size L940*W210*H22mm and weight 3.5Kg.)
1pcs driver, Meanwell 600H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2 pcs alumninum bars
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1728 pcs leds
10 600W

SN-600W-QB288*6pcs

LM561C/LM301B/LM301H

& 660nm LEDs

 6pcs QB288 PCB boards (43-48V, 16S18P), each PCB size 285*175*1.6mm.
2pcs finned antioxidant aluminum heatsinks, (each heatsink size L940*W210*H22mm and weight 3.5Kg.)
1pcs driver, Meanwell 600H-48B/48AB.
1pcs external potentiometer for dimming.
1pcs waterproof connector.
1pcs power plug.
2 pcs alumninum bars
2pcs rope ratchet hangers.
One set connectors+screws+cables+nylon ties

1512 pcs leds,

LM561C/LM301B/LM301H
216 pcs 660nm leds.
