Seed Starting Figolite 240W Samsung lm301h Mix 660nm IR Full Spectrum UV LED Grow Light Board With Fan Cooling

1 Piece
MOQ
Seed Starting Figolite 240W Samsung lm301h Mix 660nm IR Full Spectrum UV LED Grow Light Board With Fan Cooling
Features Gallery Product Description Request A Quote
Features
Specifications
Lamp Luminous Efficiency(lm/w): 220
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting Solutions Service: Horticulture Lighting Solution
Lifespan (hours): 50000
Working Time (hours): 50000
Product Weight（kg）: 3.8
Application: Seed Starting, BLOOM, VEG
PPFDμmol/(m2·s): 1000-1400
Input Voltage(V): AC100~277V
Lamp Luminous Flux(lm): 52800
Working Temperature(℃): -20 - 55
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP40
Model Number: FG2000C-V5E-X
Wattage: 240W
Light Source: LED
Warranty(Year): 7-Year
Luminous Efficacy(μmol/J): 3.1
LED Light Source: Samsung LM301H
Driver: Meanwell XLG-240-H-AB
Lamp Power(W): 240W
Color Temperature: 3000K/3500K +660nm+UV+IR
UV IR: Independently Switch Control
Dimmable: Knob Dimming
Fan Cooling: Yes
Certification: Ce RoHS
Basic Infomation
Certification: ce RoHS
Model Number: FG2000C-V5E-X
Payment & Shipping Terms
Packaging Details: 1pcs/ctn
Product Description
Samsung LM301H Diodes
Why LM301H?
Samsung's latest LM301H LEDs which are 16.5% more efficient than the LM301B's!
3.10 μmol/J compared to the LM301B 2.60 µmol/J
Not only does the LM301H diode offer a fuller spectrum light, it also outputs a higher intensity light while using the same amount of electricity as the lm301b diode, meaning powering your tents just got even cheaper. The LM301H diode is the highest μmol/J of any LED to date. With the combined increased light output with a wider light spectrum that more closely mimics the sun, the lm301h LED will quickly become the new standard diode used in top tier High Performance LED grow lights.
LM301H also has the anti-sulfurization characteristics that LM301B does not have, which makes it have a longer service life under special planting environment.
Products Description
FG2000C-V5E-X
2022 Newest product, Samsung LM301H +Epistar 660NM +UV 395NM+IR 730NM
UV IR Independently Control
Fan Cooling
V5E Board
· Original Samsung LM301H, Epistar 660nm
IR 730nm, UV395nm
· UV/IR independently control
· Fan cooling, ≤40℃, <15decibel
· PCB: 3.0/W conductivity, 2OZ copper thickness
· Full Spectrum for better results
· Better canopy light penetration with diffused light
· Perfect performance for veg and bloom
FG2000C-V5E
2pcs -Samusng LM301H V5E Board
 504pcs Samsung LM301H
64pcs Epistar 660nm
8pcs Epistar 730nm
8pcs Epistar 395nm

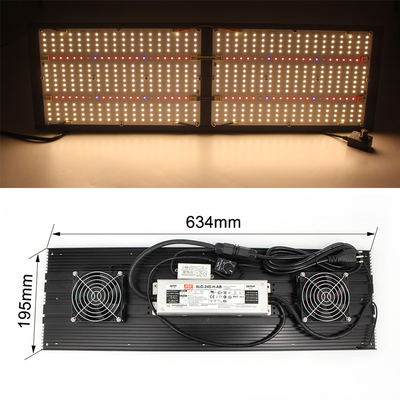

1pcs - Heatsink 634*195*10mm
1set - LED Driver Meanwell XLG-240-H-AB
1set - Fan Driver Meanwell APV-8-12
2pcs - Cooling Fan
1pcs - Digital Knob Dimmer
Components(Plug wire+Connection blocks+Hanging Rope+Screws)
Fan cooling
High speed silent cooling fans+ aluminum heat sinks, all of them constituting a powerful cooling system which is great for heat
dissipation ≤40℃, while ensuring long lifespan of the light.Low decibel, <15DB.
FG2000C-V5E-X
Spectrum
Full Spectrum (390nm-730nm )
Light Source
Original Samsung Lm301H + Epistar 660nm+ IR730nm +UV 395nm
LED quantity
Samsung LM301H 3000K/3500k : 504 pcs;  Epistar 660nm : 64 pcs; Epistar 730nm: 8pcs; Epistar UV 395nm: 8pcs
Efficiency PPE
3.1 μmol/J
PPFD
1290μmol/S/m2@40cm height
UV IR
Switch Independently Control
Power
240W±5%
Voltage
AC100-240V, 277V ,50 / 60 Hz
Driver
Meanwell XLG-240-H-AB for LED, Meanwell APV-8-12 for Fans
Cooling Fan
2 PCS
Dimming
Knob Digital Dim
Veg &Flowering Footprint
4 x4 sq ft grow area
Mounting Height
12" - 20" (30cm - 50cm ) Above the Canopy
