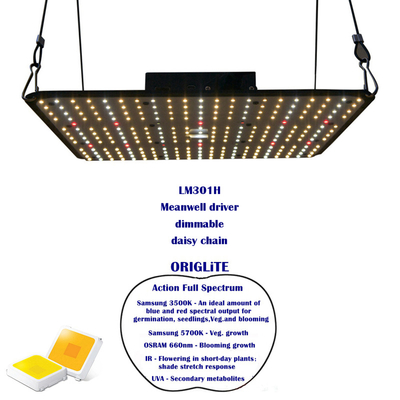

Seed Growing Samsung LM301H Led To Grow Light Panel 3500K 5700K 660nm IR UV For Grow Tents

(Ⅰ) What Lighting Does Your Strain Expect?

(Ⅱ) Short Description

(1) SCIENTFICALLY ENGINEERED ACTION FULL SPECTRUM, together with IR, UVA: Samsung LM301H 3500K, 5700K, OSRAM deep red 660nm and Seoul 380nm(UVA) and 730nm(IR), for all phases, brings about more trichomes density, more yields and potency.

(2) Large sizes, each board of 120w, L300 W300mm: For LARGE COVERAGE FOOTPRINT, Veg. 3.5’×3.5’, flowering 3’×3’ in area, designated to ensure every single inch of growth area sufficient lighting. To grow proper canopy using a board you need around 350-400watts per square meter.

(3) MEANWELL DRIVER, ULE183223, built in a waterproof metal box, very safe, nice look. One board outfitted with one driver for max electrical sustainability.

(4) Each board powered in MAX ELECTRICAL CURRENT, 2400mA, better than other competitive boards in 3000mA, emits LESS HEAT. Below 57℃, ideal for replacement of HPS. Heating is not your concern any more.

(5) Many boards CHAINED UP by use of grooved stainless steel bars at the growers’ will, for any size of the growth area, 120W, 240W, 360W, ..., 600W, 720W, 960W..., up to 3000w, much ideal for large sealed cultivation room.

(6) ORIGLITE’s technology of DIMMING by PWM via AN EXTERIOR DIGITAL DATA CABLE with USB interface and a rotary knob. PWM is easier in a digital control environment of the crops, super to dimming with a potentiometer.

(7) Both single board and many chained boards can be DIMMING SEPARATELY and INTEGRALLY. More convenient for growers to step out of the tents to make dimming. The PWM dimmer functions as a switch, pressing it for turning on/off.

(8) Installing or dimming a single board or integral dimming chained boards, designated for energy balance, uniform PAR distribution and lighting, supplementing pleasantly COMFORTABLE LIGHTING for your crops, seeking A HOMEY ATMOSPHERE for them.

(Ⅲ) Love Your Strain, Take ORIGLITE to Her

Make your growth joyful, wonderful for social settings.

Your mind is left to wander in a positive light, carrying away all stresses

1. Top Notch LED Grow Board

Anodized and extruded aluminum: With 4.5mm thick heatsink for longevity and passive, natural convection thermal management. No fans or moving components, eliminating inferior features of traditional solution of airflow.

Bright White Optical Board: Designated to be both diffuse and specular reflection. Allows to spot beam every photon into desired coverage area, and directs more of plants' energy to nourish lower flowers and leaves, offering unprecedented penetration.

Transparent preventive organic silicone conformal coating: On the bright white optical board for water resistance, dust-penetration protection and all weather protection.

Robust Physical Look

(1) 1 solid aluminum board: Coated with water-resistant conformal coating;

(2) Anodized and extruded aluminum: Black heatsink for better performance of heating emission;

(3) Concealed Electrical Wiring: Invisible buried wires protected from possible damage;

(4) Sizes: L11.8 × W11.8 × H1.38 IN; N.W.: 4.42 LB

2. Top Bin Diodes - Horticulture LED Lighting

(1) Samsung LM301H, OSRAM 660nm, Seoul 730nm(IR) and 385nm(UVA) - Samsung white LEDs LM301H V2 0.3W, 3V mid power, luminous efficacy: 223 lm/W, 0.56 μmol/s, efficacy: 3.10 μmol/J - OSRAM deep red 660nm 351H-C, PPF: 2.32 μmol/s @350mA, efficacy: 2.32 μmol/J - Seoul far red, IR 730nml; UVA 385nm

3. Tech Specs

4. Pemium Action Full Spectrum + IR + UVA

Samsung LM301H warm white 3500K + cool white 5700K + OSRAM deep red 660nm + Seoul far red 730nm + 385nm Scientifically engineered action full spectrum, designed for all phases, brings about more trichomes density, greater yields and potency.

Signaling Effects by White and Deep Red LEDs; Non-Yellowing Effects by High Efficacy; Extensive Applicative Effects by Full Packages

5. Test of PPF & PAR Value

6. Test of the Surface Temp.

Each board powered in max electrical current, 2400mA, emits less heat, better than other competitive boards in 3000mA. Transparent preventive organic silicone conformal coating material: Evenly applied onto the back of the optical aluminum board for better performance of heat emission.

Less than 47℃. Heating is not growers' concern any more.

7. Dimming - Separate Dimming or Unified Dimming

8. Hanging Distances

9. Chained up & Installation

Many boards chained by use of grooved stainless steel bars at the growers’ will for any size of the growth area and any watts, 120W, 240W, 360W, ..., 600W, 720W, 960W..., up to 3000w, much ideal for large sealed cultivation room.

10. Universal Applications for Growth Facilities of Any Sizes

11. What You Get

Dimmable

- 1 QB288 of action full spectrum;

- 1 Meanwell drivers, 95.7% in efficiency;

- 1 water resistant metal box for built-in Meanwell drivers, with 2 RJ45 ports;

- 1 1.97‘’ length internet cable with Rj45 connectors used for groups chain (for option)

- 1 3.28’ length data cable with PWM rotary knob for unified dimming (for option);

- 1 grooved stainless steel bars for groups chain;

-1 ULlisted electrical wire(customized, 9.84’), 5.9’ in length D 3.94’;

- 2 stainless hanging steel cords

Non-Dimmable

- 1 QB288 of action full spectrum;

- 1 Meanwell drivers, 95.7% in efficiency;

- 1 water resistant metal box for built-in Meanwell drivers, with 2 RJ45 ports;

- 1 grooved stainless steel bars for groups chain;

- 1 ULlisted electrical wire(customized, 9.84’), 5.9’ in length D 3.94’;

- 2 stainless hanging steel cords
